HD SDI Camera Using 1/2.8 CMOS image sensor, SDI 2 MP 1080P output
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission

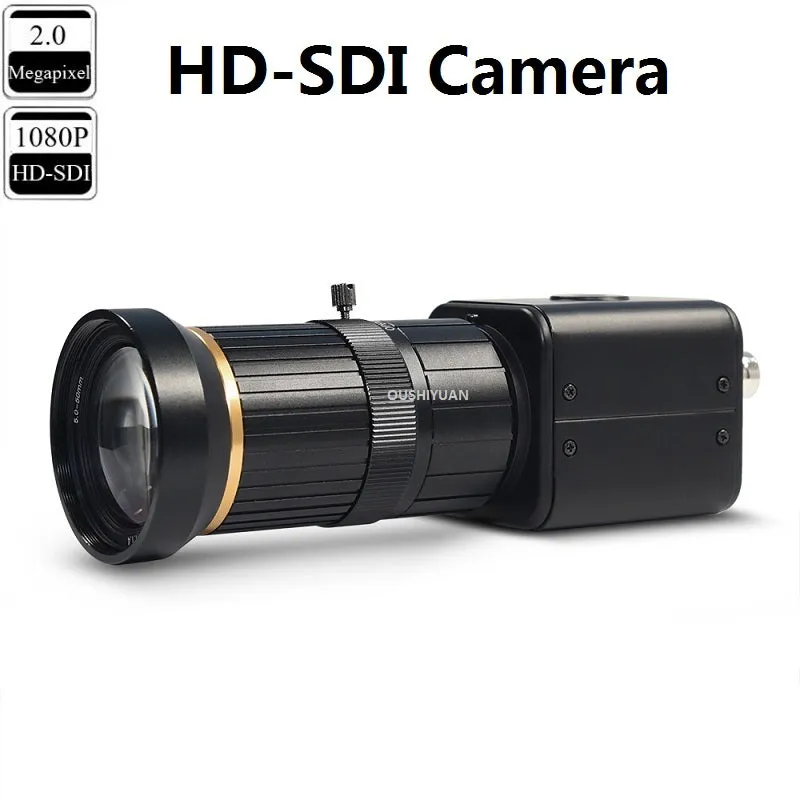

HD-SDI 2 Megapixel 1080P HD Digital CCTV Security Camera without night vision

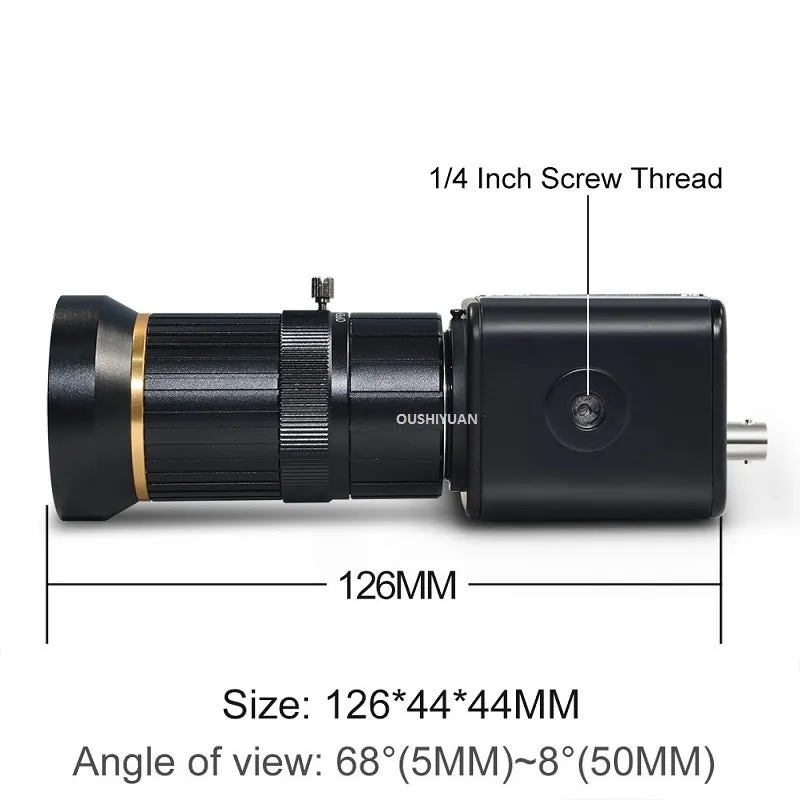

Mini metal shell with double 1/4 Inch Screw Thread
Product overview
2.0 Mega Pixel, Panasinic CMOS Sensor1080p(1920x1080)@30/25fps
OSD menu,Motion detection,Privacy Zone,HLC,BLC

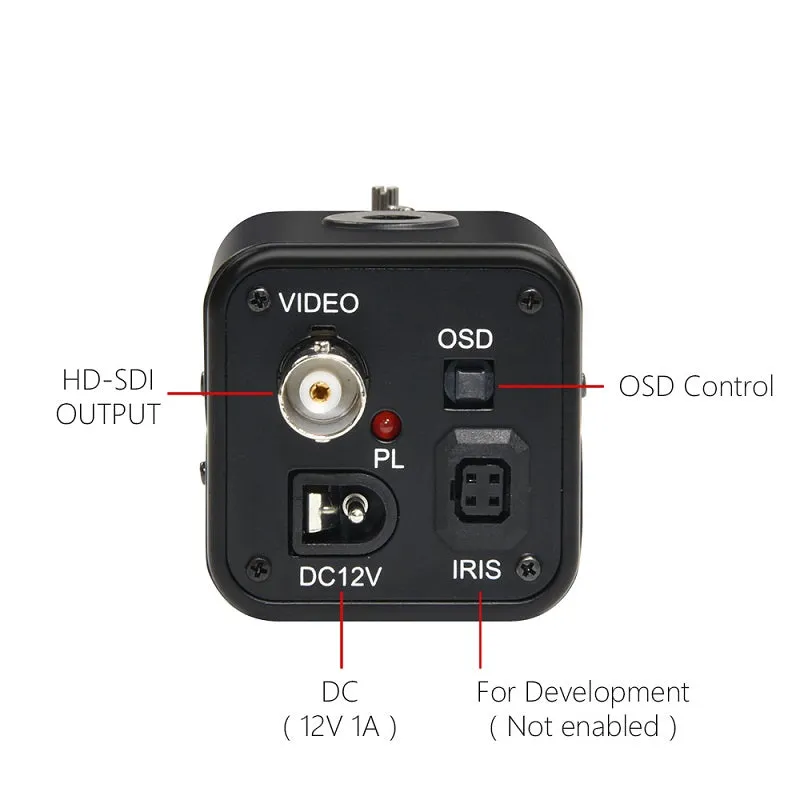

Output-Megapixel HD-SDI(BNC)
Technical parameters
Model No. | OSY-SDI 99 (5-50mm) |
Image Sensor | 2.0 Mega Pixel, Panasonic CMOS Sensor |
Effective pixels | 1920(H) x 1080(V) |
Scanning system | Progressive Scan |
Minimum illumination | 0.001 Lux |
Lens | 3MP 5-50mm Lens |
IR view distance | N/A |
WDR (Long and Short exposure) | OFF/ON(Level Adjustable) |
O.S.D | Built-in |
3D-DNR (3D Digital Noise Reduction) | OFF/ON(LOW/MIDDLE/HIGH) |
Sens-Up | OFF/ON |
Motion Detection | OFF/ON |
Privacy Zone | OFF/ON |
HLC | OFF/ON |
B.L.C. control | OFF/ON |
Defog | OFF/ON |
White balance | AWB/ATW/PUSH/MANUAL |
A.G.C | HIGH / LOW |
Electronic shutter Speed | AUTO/MANUAL/FLK |
Video output | HD-SDI(SMPTE 292M compatible) / :1.0 Vp-p Composite Signal(75ohm) |
Operation temperature | -10- 50 |
Operation Humidity | Within 95% RH |
Power supply | DC12V( /-15%) |
Power Consumption | 100mA |
Item Included:
- 1x CCTV 2.0MP Lens 5-50mm 1080P SDI Camera
1x Power Supply
